INDUSTRIAL PRINTING

Label Printing

A digital label printing system that offers enhanced productivity, job flexibility, operability and excellent image quality at an affordable cost. A “Perfect Fit” for business expansion and allows parallel use with existing analogue presses seamlessly.

1
2
3

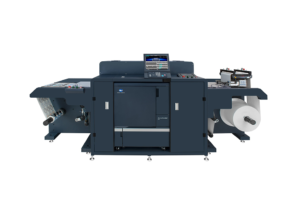

AccurioLabel 230
1

Media flexibility

2

High-resolution print heads

3

Absolute consistency in paper feeding, registration, image quality and repeatability

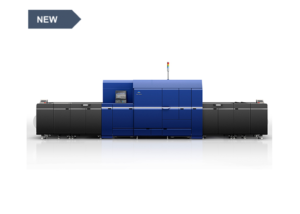

Accurio Label 400

See the Potential of our Next Generation Label Press

TECHNOLOGYDry Toner Electrophotography
COLOURCMYK, White (optional)
PRINTING SPEED– 39.9 m/min. (CMYK), down to 20 m/min (CMYK+W)
– 39.9, 34.2, 30, 20, 15 m/min. depending on media types
WEB CONTROLIntegrated web guide system (BST) on infeed section and rewinder
SHAFT DIAMETER3 inches
PAPER WIDTH250 to 330 mm
MAX. PRINTED IMAGE WIDTH (LENGTH)320mm
MEDIA THICKNESS (WEIGHT)81 to 256 gsm
SUPPORTED SUBSTRATESPaper, PP, PET
MACHINE DIMENSION (L x W x H)– 7,160 x 1,435 x 1,628 mm
– 7,360 x 1,538 x 1,905 mm (Pro version)
MACHINE FLOOR LAYOUT (L x W x H)– 7,930 x 2,130 x 1,628 mm
– 8,130 x 2,145 x 1,905 mm (Pro version)
MACHINE WEIGHT– 2,920 kg
– 3,520 kg (Pro version)
MAX. ROLL DIAMETER1,000 mm (unwinder and rewinder)
OPTIONS– Corona treater
– Unwind unit for lamination
– Drawer dusty cleaner -double sides
PRINT ENGINE2 x Single Phase 220-230 V, 25A, 50/60Hz
Accurio Label 230

Accurio Label 230

A Perfect Fit for Business Expansion

TYPEConsole
COLOUR SUPPORTFull colour (CMYK)
PRINT SPEED (SPEED RANGE)– Max.: 23.4 m/min. (76 fpm)
– High: 18.9 m/min. (62 fpm)
– Middle: 13.5 m/min. (44 fpm)
– Low: 9.45 m/min. (31 fpm)
PRINT RESOLUTION3600 dpi (equivalent) × 1200 dpi
PRINT SIZE90 × 115 to 320 × 1,195 mm
DIMENSION1,200 × 903 × 1,478 mm
WEIGHT292 kg
RECOMMENDED FORHigh Quality Labels

KM-1e

Creating a highly stable, colour-accurate digital press platform, the AccurioJet KM-1e now incorporates an even more advanced inkjet print head design with patented Dot Freeze Technology™ paired with unheard- of versatility in offset substrate handling. Konica Minoltas latest digital UV inkjet press combines the print materials and stability characteristic of offset presses with the benefits of latest digital technology. Take advantage of media flexibility and zero make-ready for variable data printing and production on oversized B2 sheets.

1
2
3
4
5

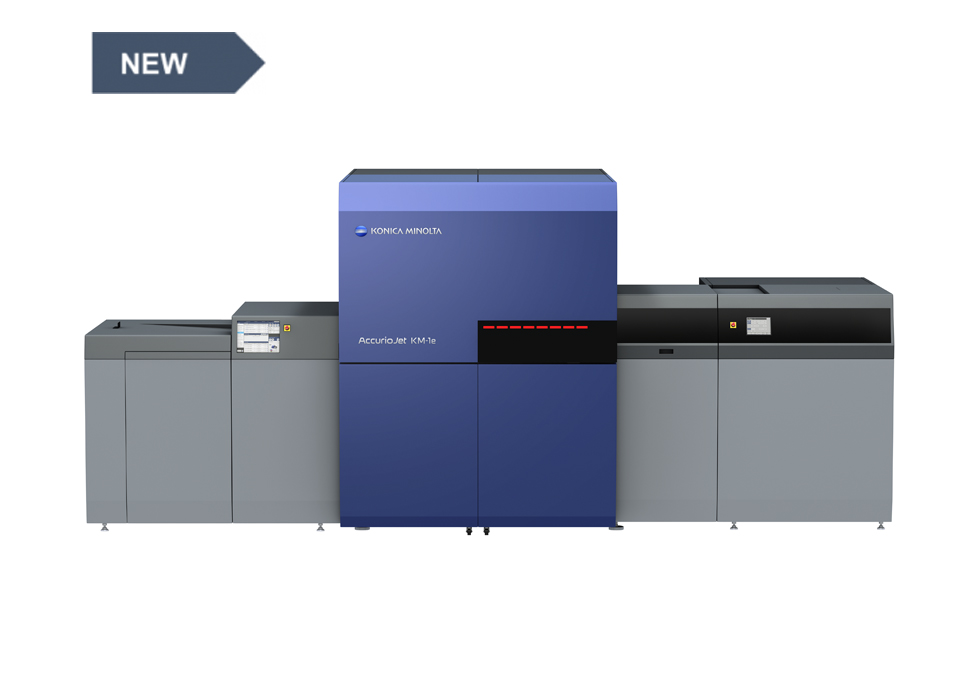

AccurioJet KM-1e
1

High productivity

2

Media flexibility

3

Outstanding image quality

4

Print on various media types

5

Increase the diversity of your application areas and potential for new business

AccurioJet KM-1e

AccurioJet KM-1e

Discover Growth without Compromise

TYPEB2+ sheetfed UV inkjet press
RESOLUTION1,200 x 1,200 dpi
INKUV Ink
NUMBER OF COLOURS4
PRINTING SPEEDS– 3,000 sph (single-sided)
– 1,500 sph (double-sided)
SHEET SIZEUp to 585 x 750 mm
SHEET THICKNESS– 0.06 – 0.6 mm (single-sided)
– 0.06 – 0.45 mm (double-sided)
DIMENSIONS5,400 (W) x 3,000 (D) x 2,400 (H) mm
MACHINE WEIGHTApprox. 9000 kg
